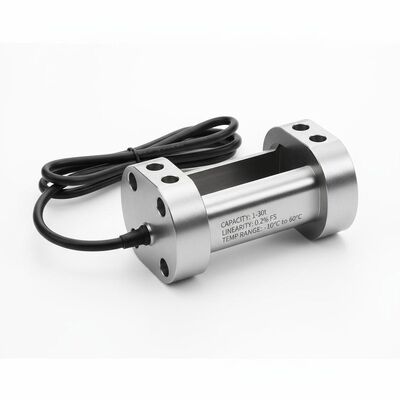

Capacity 1 to 30t Strain Gauge Load Cell Providing Linearity 0.2 Percent FS and Temperature Range Minus 10 to 60 Degrees Celsius for Load Sensing

Product Description:

The Strain Gauge Load Cell is a highly precise and reliable sensor designed for accurate force measurement in a variety of industrial and laboratory applications. Utilizing advanced shear strain gauge technology, this load cell ensures exceptional performance and durability, making it an ideal choice for those who require consistent and accurate data under diverse operating conditions.

One of the standout features of this load cell is its impressive linearity of 0.2 %FS (Full Scale). This means the output signal remains closely proportional to the applied force throughout the entire measurement range, minimizing errors caused by non-linear responses. Such precision is critical in applications where exact force readings are essential, including material testing, automation control systems, and structural health monitoring.

The load cell incorporates high-quality foil strain gauges, which are known for their stability and sensitivity. These linear strain gauges effectively detect minute deformations in the load cell structure caused by applied forces. When force is exerted, the shear strain gauges embedded within the sensor experience slight changes in resistance, translating mechanical stress into an electrical signal that can be accurately measured and analyzed. The combination of shear strain gauge and foil strain gauges technology ensures a robust and consistent response to applied loads, even in environments with fluctuating temperatures or mechanical vibrations.

Mounting and installation are straightforward thanks to the screw mount design of this strain gauge load cell. The screw mount ensures a secure and stable attachment to the measurement setup, reducing the risk of misalignment or movement that could otherwise compromise data quality. This mounting type also facilitates easy integration into existing systems, saving time and effort during setup and maintenance.

Reliability is further enhanced by the load cell's excellent insulation resistance, rated at ≥5000 MΩ at 100VDC. This high insulation resistance minimizes leakage currents, ensuring the integrity of the electrical signals generated by the strain gauges. As a result, the sensor maintains accurate and noise-free output, even in electrically noisy environments or under long-term usage conditions.

Repeatability is another critical parameter where this load cell excels, with a remarkable repeatability of ≤0.01% F.S. This ensures that repeated measurements under the same conditions yield nearly identical results, a vital feature for quality control processes and experimental repeatability. Users can trust the load cell to provide consistent data over numerous cycles without significant drift or variation.

Temperature variations can often affect the zero balance of load cells, leading to measurement inaccuracies. However, this strain gauge load cell addresses this challenge with a temperature effect on zero of no more than ≤0.02% F.S. per 10℃. This low temperature-induced zero shift means the sensor remains stable and reliable across a wide temperature range, reducing the need for frequent recalibration and enhancing overall measurement confidence.

In summary, the Strain Gauge Load Cell equipped with shear strain gauge, linear strain gauges, and foil strain gauges offers a highly accurate, stable, and reliable solution for force measurement. Its excellent linearity, minimal temperature effect, superior insulation resistance, and outstanding repeatability make it suitable for demanding applications requiring precise load monitoring and control. The screw mount design adds convenience and stability in installation, ensuring that this load cell can be seamlessly integrated into various measurement systems. Whether in industrial automation, research laboratories, or structural testing, this strain gauge load cell delivers dependable performance and long-term durability.

Features:

• Product Name: Strain Gauge Load Cell
• Material: Alloy Steel or Alloy Aluminum
• Capacity Range: 1-30 tons
• Compensated Temperature Range: -10℃ to 50℃
• Temperature Effect on Zero: ≤0.02% F.S. per 10℃
• Linearity: 0.2% Full Scale (FS)
• Utilizes high-precision Resistance Strain Gauge technology
• Incorporates advanced Shear Strain Gauge for enhanced sensitivity
• Durable and reliable Resistance Strain Gauge design for accurate measurements

Technical Parameters:

Applications:

The Top Sensor CL-04 Strain Gauge Load Cell is a highly precise and reliable sensor designed to measure force and weight with exceptional accuracy. Manufactured in China, this product boasts high performance and excellent insulation resistance of ≥5000 MΩ (100VDC), making it suitable for a variety of demanding applications. With a linearity of just 0.2 %FS and a compensated temperature range from -10℃ to 50℃, the CL-04 load cell ensures consistent and stable readings even in fluctuating environmental conditions.

This strain gauge load cell is widely used in industrial weighing systems, material testing machines, and force measurement setups. Its resistance strain gauge technology allows for precise detection of mechanical strain, making it an ideal choice for applications requiring accurate load measurements. The product’s operating temperature range of -10 ℃ to 60 ℃ further expands its usability in both indoor and outdoor environments.

In manufacturing industries, the CL-04 model is commonly employed to monitor the weight of raw materials and finished products, ensuring quality control and efficient production processes. It is also essential in automation systems where precise force feedback is crucial for controlling machinery and maintaining safety standards. Additionally, the resistance strain gauge embedded in the load cell provides excellent durability and stability, which is critical in environments where continuous monitoring is necessary.

With a minimum order quantity of 20 pieces, Top Sensor offers this product packaged securely in carton boxes and pallets to facilitate safe transportation. The delivery time is typically 20-25 days, with payment terms requiring T.T in advance. The supply ability of 2000 pieces per month ensures that large-scale projects can be supported without delay.

Overall, the Top Sensor CL-04 strain gauge load cell is a versatile and dependable choice for a wide range of occasions and scenarios, including industrial weighing, force measurement, and automation control. Its advanced resistance strain gauge technology guarantees high precision and good performance, making it an invaluable component in various engineering and scientific applications.

FAQ:

Q1: What is the brand and model number of this strain gauge load cell?

A1: The strain gauge load cell is manufactured by Top Sensor and the model number is CL-04.

Q2: Where is the Top Sensor CL-04 strain gauge load cell made?

A2: This product is made in China.

Q3: What is the minimum order quantity for the CL-04 load cell?

A3: The minimum order quantity for the CL-04 strain gauge load cell is 20 pieces.

Q4: How is the CL-04 load cell packaged for shipment?

A4: The load cells are packaged in carton boxes and pallets to ensure safe delivery.

Q5: What are the delivery time and payment terms for ordering the CL-04?

A5: The delivery time is typically 20-25 days, and payment terms are T.T (Telegraphic Transfer) in advance.

Q6: What is the monthly supply capacity for the Top Sensor CL-04 load cell?

A6: The supply ability is 2000 pieces per month.
